Printrbot Part 3 : Bowden Setup

I totally forgot to write about my bowden setup. I will keep this brief, because it is very simple. Below are pictures of the parts with comments.

Above is the bowden coupler. I parameterized it better and simplified the script over the original. The new script allows me to take into account offsets in the hole and filament output. I used a pencil sharpener to slightly taper the holes so I could thread on the nuts. I am using 6mmOD 4mmID PTFE tubing. I found I just needed to get enough leverage on the nuts and they threaded relatively easily.  The part can be found here…

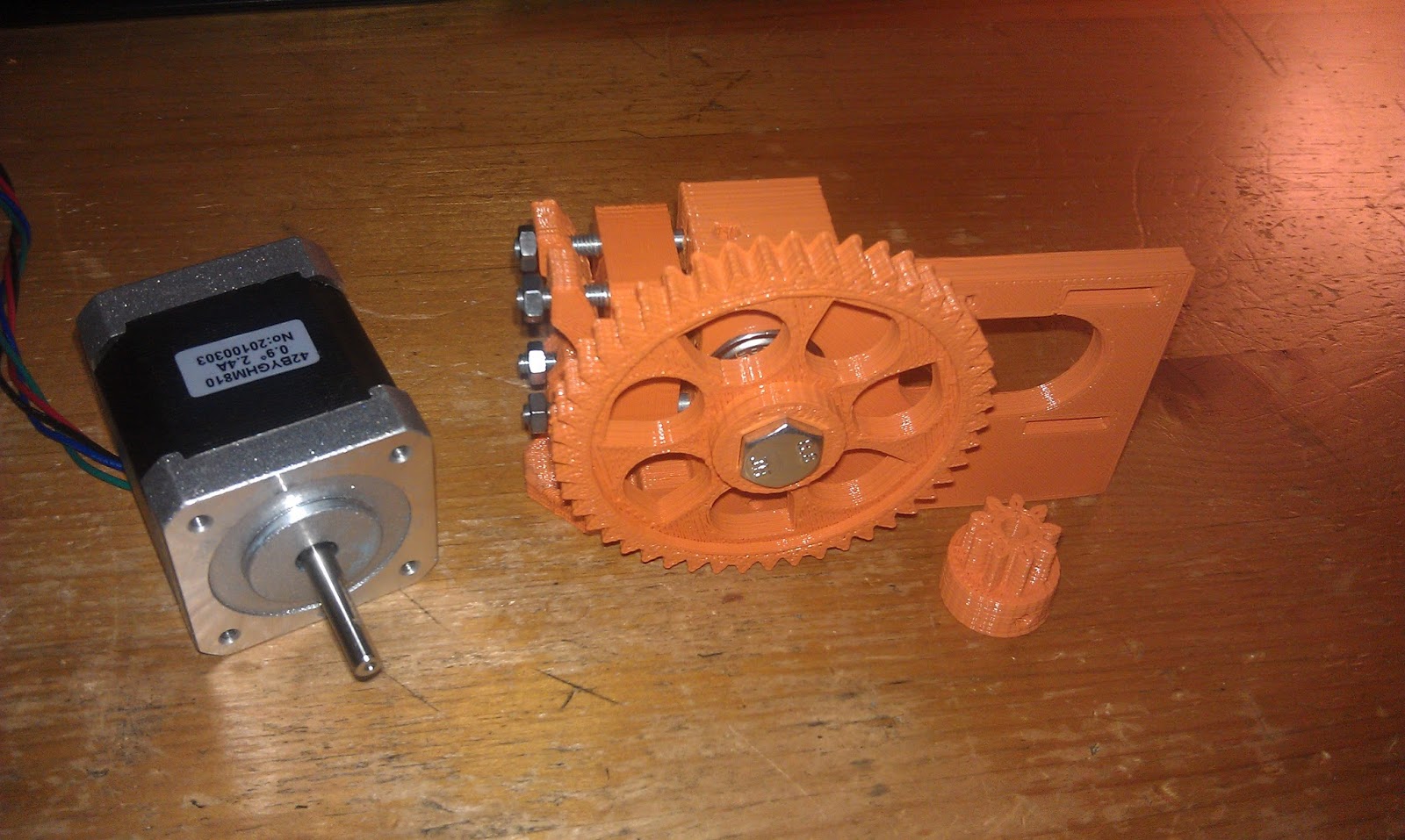

I am using Stoffel15’s 9/47 wade’s extruder with a Nema 17 stepper. I just wanted to get more torque on the filament, no other particular reason for choosing this cold end. Parts are here…

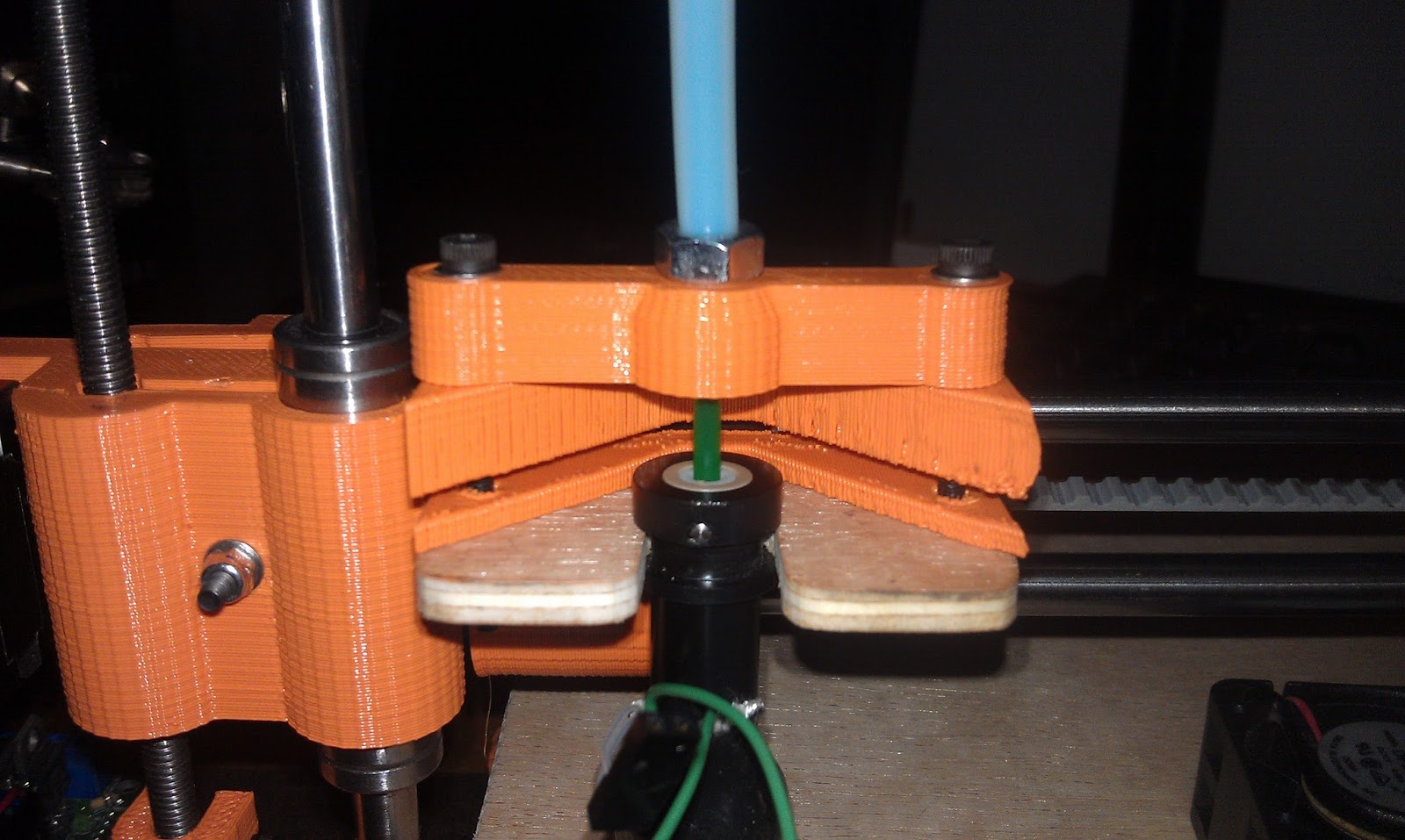

Here you can see the x-carriage. I put a piece of PTFE in the gap so the filament doesn’t collapse from the pressure.
